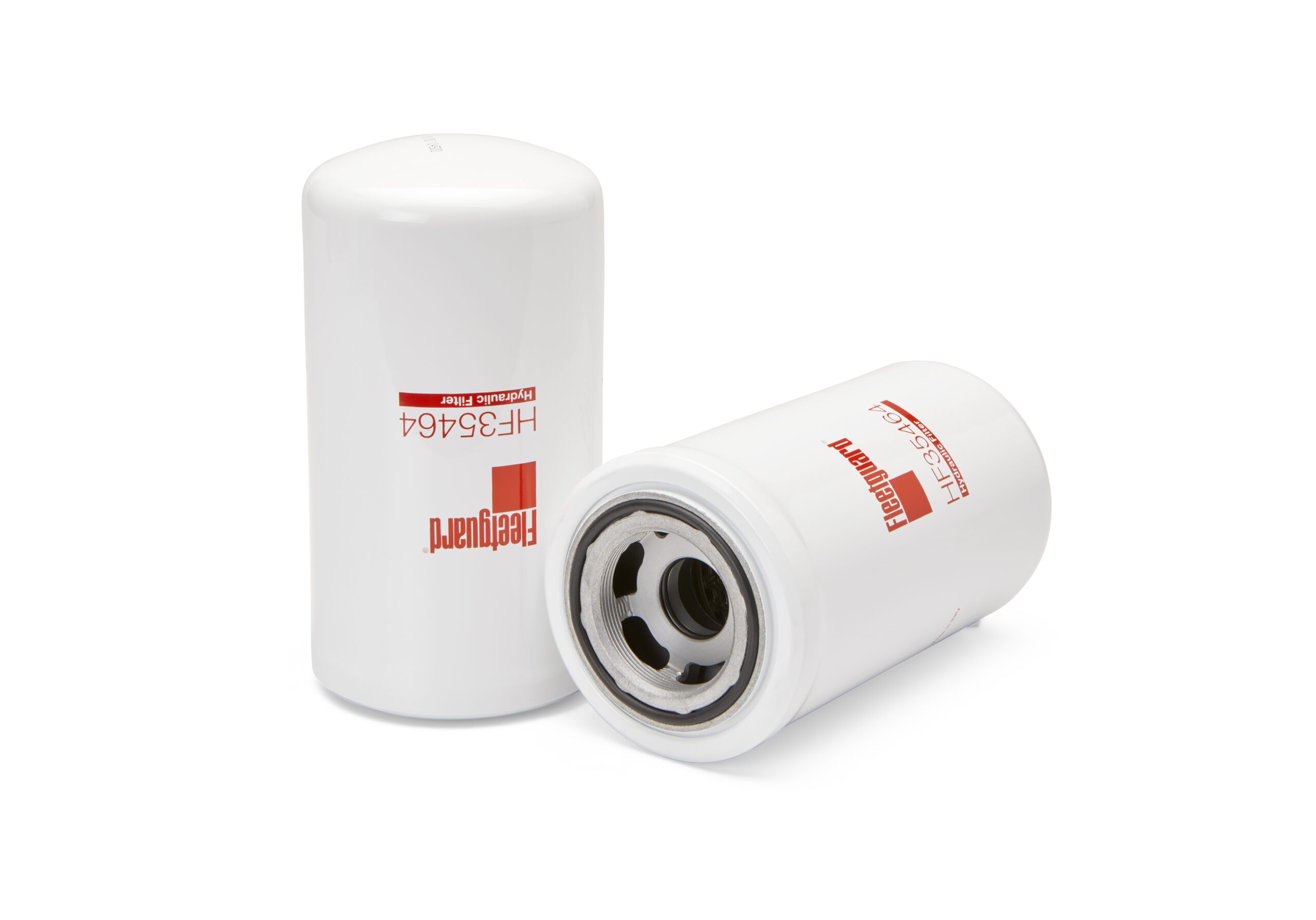

Fleetguard Hydraulic Filter HF35464

Description

Overall Height: 178 mm (7.008 in)
Largest OD: 94.5 mm (3.72 in)
Seam OD: 97.5 mm (3.839 in)
Gasket OD: 70 mm (2.756 in)
GASKET INSIDE DIAMETER: 63 mm (2.48 in)
Thread Size: 2-16 UN-2B
Standpipe: NO
BPV Setting: 0 kPa (0 PSI)
TWA MICRON @ BETA=2: 0 micron (0 micron)
TWA MICRON @ BETA=20: 4 micron (4 micron)
TWA MICRON @ BETA=200: 8 micron (8 micron)
TWA MICRON @ BETA=75: 5 micron (5 micron)

Cross Reference: BALDWIN BT9400MPG; DONALDSON P765075; NAPA 7227
Primary Application: KALMAR-BT 9210280007
